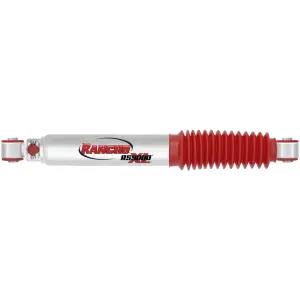

RS9000XL Suspension Shock Absorber - Rancho Suspensions (RS999152)
RS9000XL Suspension Shock Absorber - Rancho Suspensions (RS999152)
- Sale Price: $125.12
Key Product Benefits
- NINE LEVELS OF PERFORMANCE -- Nine-position easy-to-adjust knob allows customized damping control and firmness for on-road and off-road flexibility
- DESIGNED FOR HARDWORKING VEHICLES -- Ideal for stock or lifted trucks, SUVs and Jeeps that tow, haul or go off road
- INDUSTRY FIRST -- Recognized as the first nine-position manually adjustable shock series in the off-road market
- REDUCES FADE -- Nitrogen gas pressurized to 120 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
- STRONG AND DURABLE -- Features an application-specific 18mm nitro-carburized piston rod to resist scuffs and corrosion, double-welded loops at stress areas and 1.25-in. sintered iron piston for enhanced structural integrity
- HANDLES EXTREME TEMPERATURE CHANGES -- Up to 2.75-in. tri-tube body (application specific) filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
- SMOOTH PERFORMANCE -- Polyurethane rebound bumper and bushings and graphite-filled fluon-banded piston help absorb ride harshness and enhance responsiveness to changing road conditions for an overall smoother ride
- BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the long-lasting premium liquid metallic finish and polyvinyl protective boot ensures longer life
- BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
Drop Ship
Direct Shipping From Supplier [*]
Some products available are shipped directly from the manufacturer or supplier rather than from our own warehouse. This allows us to offer you a wider selection of parts at competitive prices. When an item shows "Drop Ship" the supplier currently has it in stock and it will typically ship within 1–2 business daysAdditional Information
| Brand | Rancho RS9000XL |
| UPC | 00039703091527 |
| Compressed Length | 12.24 310.9 |
| Extended Length | 17.83 452.9 |
| Travel Length | 5.59 142 |
| Shock Stroke | 5.59 142 |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.5/8" Sleeve OAL |
| Lower Mount Code | LS39 |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 2.7/16" Sleeve OAL |
| Upper Mount Code | LS77 |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Gas Charged | Yes |
| Mounting Hardware Included | No |
| Parts Pack(s) | None |
| Body Diameter | 2.18 55.4 |
| Cylinder Outside Diameter | 2.18 55.4 |
| Body Material | Steel |
| Cylinder Material | Steel |
| Body Color | Silver |
| Cylinder Color | Silver |
| Finish | Painted |
| Cylinder Finish | Painted |
| Boot Included | Yes |
| Dust Shield Included | Yes |
| Dust Shield Diameter | 2.99 75.9 |
| Dust Shield Material | Rubber |
| Dust Shield Color | Red |
| Rod Diameter | 0.622 15.8 |
| Shaft Material | Nitrocarburized |
| Shock Absorber Bore Size | 1.26 32 |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Internal Rebound Spring | No |
| Hydraulic Lockout | No |
| Internal Construction Type | Tri Tube |
| Grade Type | Performance |
| Adjustable Damping | Yes |
| Active or Passive Suspension | Passive |
| Adjustable Compression | Yes |
| Adjustable Rebound | Yes |
| Damping Adjustment Type | Manual |
| Valving Type | Progressive |
| Self-Leveling | No |
| Adjustable Ride Height | No |
| Maximum Ride Height Lowering Distance | 0 |
| Maximum Ride Height Raising Distance | 0 |
| Air Adjustable | No |
| Air Ride Suspension | No |
| Bladder(s) Included | No |
| Bladder Sleeve(s) Included | No |
| Bladder Heavy Duty Crimping Rings Included | No |
| New Or Remanufactured | New |
| Coil Over Springs Included | No |
| Bearing Plate Included | No |
| Spring Included | No |
| Coil Spring Insulator(s) Included | No |
| Spring Isolators Included | No |
| Spring Seat Included | No |
| Remote Reservoir | No |
| Strut Mount Insulator(s) Included | No |
Also Purchased
Vehicle Fitment
Details
- Brand:
- SKU:
RS999152
- GTIN: 00039703091527
- UPC: 039703091527
- Positions: Front
- Description: Get premium control and performance with Rancho RS9000™XL shocks. Recognized as the first nine-position manually adjustable ride control series in the off-road market, RS9000XL shocks are ideal for on- and off-road use, towing and more.
Rancho RS9000XL RS999152 Suspension Shock Absorber for Chevrolet K1500
RS9000XL Shock Absorber
RS9000XL Suspension Shock Absorber - Condition: New
