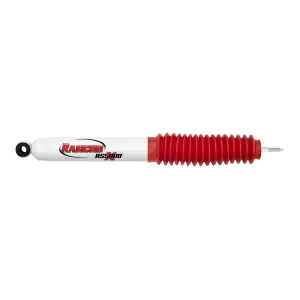

RS5000X Suspension Shock Absorber - Rancho Suspensions (RS55179)
RS5000X Suspension Shock Absorber - Rancho Suspensions (RS55179)
- Sale Price: $61.87
Key Product Benefits
- IMPROVED HANDLING AND PERFORMANCE -- Cross Tuned technology featuring exclusive rebound valving system and advanced compression phase improves overall handling and performance on and off road
- MINIMIZES ROUGH RIDE -- Exclusive Progressive Engagement Valving is custom-tuned for each vehicle to help reduce initial impacts at low speeds and minimizes a rough ride
- STRONG AND DURABLE -- Features a 16mm nitro-carburized piston rod to resist scuffs & corrosion, double-welded loops at stress areas, 35mm sintered iron piston for enhanced structural integrity and polyvinyl protective boot
- HANDLES EXTREME TEMPERATURE CHANGES -- Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
- SMOOTH PERFORMANCE -- Polyurethane rebound bumper and rubber bushings help absorb ride harshness while the fluon-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
- REDUCES FADE -- Nitrogen gas pressurized to 150 PSI to minimize air-to-oil mixture to reduce damping performance fade and foaming
- MAINTAINS VEHICLE CONTROL -- Compression Control Valve is custom-tuned for each vehicle to regulate fluid transfer to absorb impacts without disc flutter and help maintain shock motion control
- BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the application-specific piston delivers heightened control of shock motion due to the expanded piston area
- BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
Drop Ship
Direct Shipping From Supplier [*]
Some products available are shipped directly from the manufacturer or supplier rather than from our own warehouse. This allows us to offer you a wider selection of parts at competitive prices. When an item shows "Drop Ship" the supplier currently has it in stock and it will typically ship within 1–2 business daysAdditional Information
| Brand | Rancho RS5000X |
| UPC | 00039703010368 |
| Compressed Length | 13.76 349.5 |
| Extended Length | 22.28 565.9 |
| Travel Length | 8.52 216.4 |
| Shock Stroke | 8.52 216.4 |
| Lower Mount Type | Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL |
| Lower Mount Code | L1 |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Upper Mount Code | S4 |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Base of Stem |
| Gas Charged | Yes |
| Mounting Hardware Included | Yes |
| Parts Pack(s) | P01135, P00920 |
| Body Diameter | 2.251 57.2 |
| Cylinder Outside Diameter | 2.251 57.2 |
| Body Material | Steel |
| Cylinder Material | Steel |
| Body Color | White |
| Cylinder Color | White |
| Finish | Painted |
| Cylinder Finish | Painted |
| Boot Included | Yes |
| Dust Shield Included | Yes |
| Dust Shield Diameter | 2.99 75.946 |
| Dust Shield Material | Rubber |
| Dust Shield Color | Red |
| Rod Diameter | 0.622 15.8 |
| Shaft Material | Nitrocarburized |
| Shock Absorber Bore Size | 1.3779527559055118 35 |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Internal Rebound Spring | No |
| Hydraulic Lockout | No |
| Internal Construction Type | Twin Tube |
| Grade Type | Performance |
| Adjustable Damping | No |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Valving Type | Progressive |
| Self-Leveling | No |
| Adjustable Ride Height | No |
| Maximum Ride Height Lowering Distance | 0 |
| Maximum Ride Height Raising Distance | 0 |
| Air Adjustable | No |
| Air Ride Suspension | No |
| Bladder(s) Included | No |
| Bladder Sleeve(s) Included | No |
| Bladder Heavy Duty Crimping Rings Included | No |
| New Or Remanufactured | New |
| Coil Over Springs Included | No |
| Bearing Plate Included | No |
| Spring Included | No |
| Coil Spring Insulator(s) Included | No |
| Spring Isolators Included | No |
| Spring Seat Included | No |
| Remote Reservoir | No |
| Strut Mount Insulator(s) Included | No |
Also Purchased
Vehicle Fitment
Select Your Vehicle Select
| Year | Make | Model | Body & Trim | Engine & Transmission |
|---|
Details
- Brand:
- SKU:
RS55179
- GTIN: 00039703010368
- UPC: 039703010368
- Positions: Rear, Front Forward
- Description: Featuring a unique, exclusive valving system and advanced compression functionality, Rancho® RS5000™X shocks deliver improved overall on- and off-road handling and performance.
Rancho RS5000X RS55179 Suspension Shock Absorber for Ford F-150
RS5000X Shock Absorber
RS5000X Suspension Shock Absorber - Condition: New
